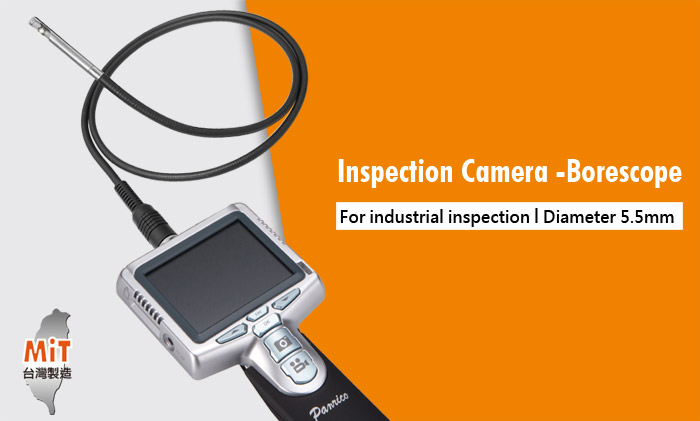

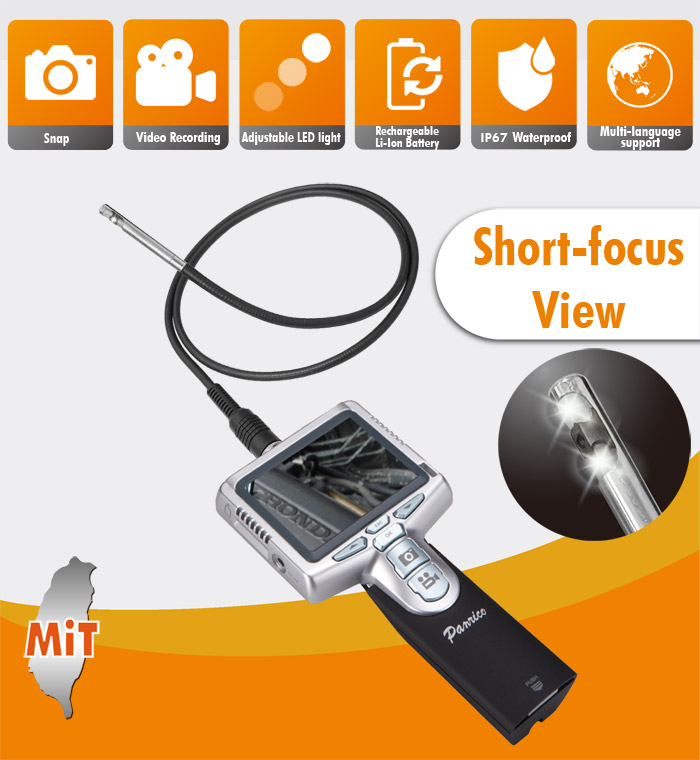

Short-focus industrial Endoscope Camera 5.5mm 90 Degree Side View Borescope Inspection Camera

PST-2486-9155

This is a side view inspection camera for short-focus inspection specially designed for cavity wall inspection..

Features:

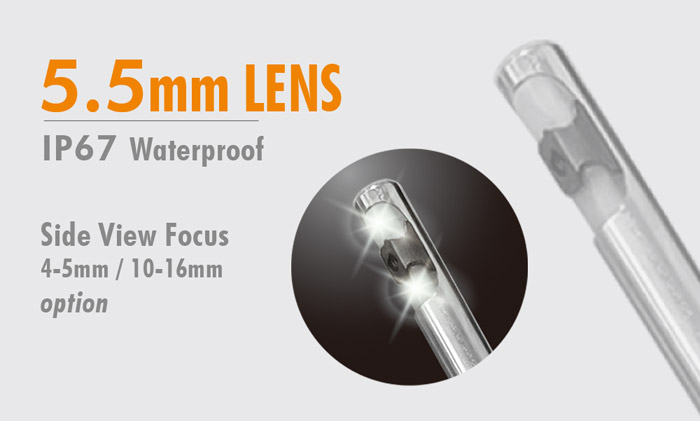

300k pixies resolution 5.5 mm 90° Industrial endoscope, 2 focus range option available : 4mm-5mm / 10mm-16mm.
4-5mm focal length lens for near-focus, 10-16mm focal length lens for short-focus (option).
5.5mm 90° side view 4-5mm focus-range industrial endoscope diffused LED light design, the reflection of smooth objects will not cause white exposure.

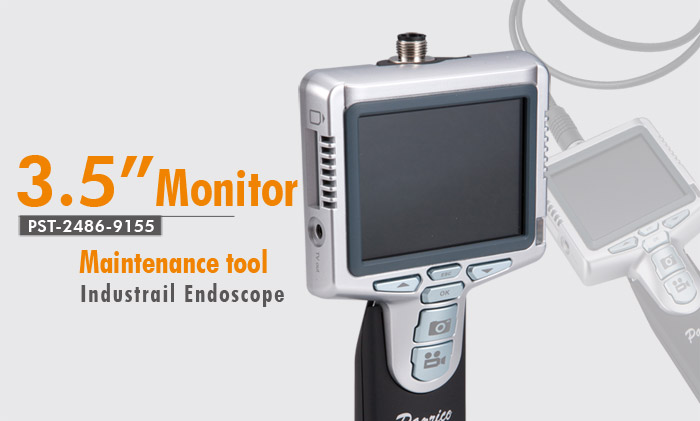

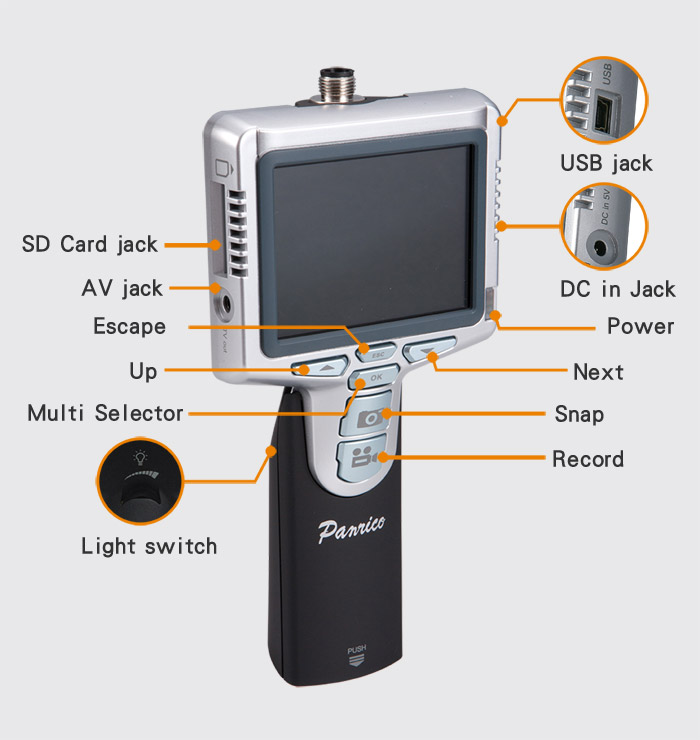

3.5” TFT-LCD monitor, available for recording photos and videos.
IP67 dust-resistant & waterproof.
Available for adjusting LED light brightness.
Replaceable & rechargeable Li-on battery.
With SD card recording, support Max. 32GB SD Card.
Support multi languages.
Ergonomic design, easy to handle and operate.

Application:

Inspection and maintenance of precision machinery and equipment: bearings, printers, molds, lathes, etc.
Quality control: incoming material inspection, finished product process inspection.
Factory production line inspection: project process monitor, wafer & PCB detection.

Specifications:

Function	Specification
Main System
Power	DC5V
Display	3.5" TFT LCD monitor
Resolution	720 x 480 (NTSC) / 720 x 576(PAL) pixels
Interface	Mini USB 1.1/ AV Out
Battery	Rechargeable Li-ion (3.7V 2350mAh)
Video format	NTSC & PAL
Recording medium	4GB SD card (support to 32GB card)
Image storage format	JPEG (640 x 480)
Video recording format	AVI (640 x 480)
Language	Support 15 languages
Zoom	2 times digital Zoom in and Zoom out
Mirror	Reflecting object surfaces
Illuminant intensity	Adjustable
Photo / video replay	Support
Photo comparison	Support 2 photos comparison
Certification	CE / FCC
Camera
Image sensor	CMOS
Camera diameter	5.5mm
Cable length	Default 1M (optional 1, 2, 3, 5, 10M)
Exposure	Automatic
Auto with balance	Fix
S/N ratio	38db
Field of view (Fov)	58°
Depth of field (Dof)	Short-focus 4-5mm / Near-focus 10-16mm
Effective pixels	640 x 480 / 300,000 pixels
Light source	Built-in bright white LED
Operating temperature	-10 ~ 50℃
Waterproof	IP67
