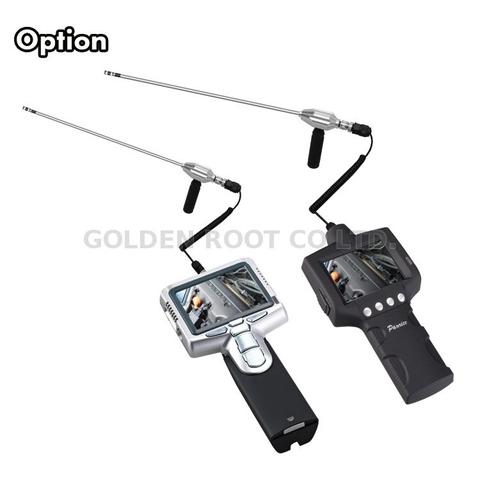

0/90 degree side view inspection camera rigid borescope, application for industrial examination, bearing, home security, automobile, machinery, insect extermination, plumbing, pipeline inspection, aero examination, vessels check, locking, electric industry.
- Replace old type rigid borescope which checking objects by eyes.
- New type rigid borescope easily watching objects in LCD monitor.
- Ergonomic design and reduce eyes fatigue by long time continuous vision.
- 0o rigid borescope available inspect front view, fields of view 54o
- 90o rigid borescope available view minimum focus at 4.5mm ~ 5mm. Suitable for auto parts examination, slippery surfaces inspection.
- 90o rigid borescope adopt diffusion of LED light, without over exposure issue.
Features
- Optional focus distance probes.
- Minimize lighting reflection.
- Detachable handle / base.
- For small tube hole checking.
Specification:
| Features | Specification |
| Image sensor | CMOS |
| Camera diameter | 3.9mm / 5.5mm |
| Cable length | 350x 430mm |
| Exposure | Automatic |
| Auto with balance | Fix |
| S/N ratio | 42db |
| Field of view (Fov) | 60o |
| Depth of field (Dof) | 2 ~ 5cm / 8cm ~ infinity |
| Effective pixels | 640 x 480 / 300,000 pixels |
| Light source | 4 white LED(5.5mm) |
| Operating temperature | -10 ~ 60oC |
| Waterproofing | IP67 |
